Bionic Robot Hand (Left)
Bionic Robot Hand (Left)
Bionic Robot Hand (Left) Bionic Robot Hand (Left) Bionic Robot Hand (Left) Bionic Robot Hand (Left)

Bionic Robot Hand (Left)

$ 67.39

$ 87.61

Save: $

Title:
  • Localstock
  • Overseasstock
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

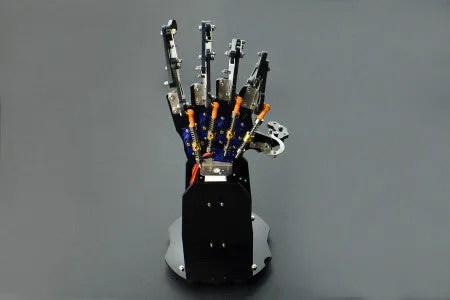

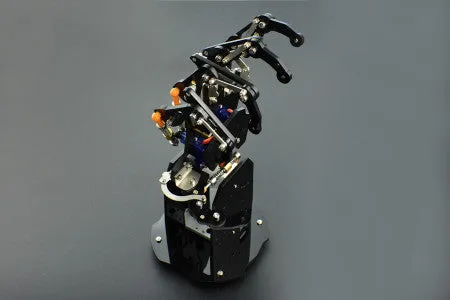

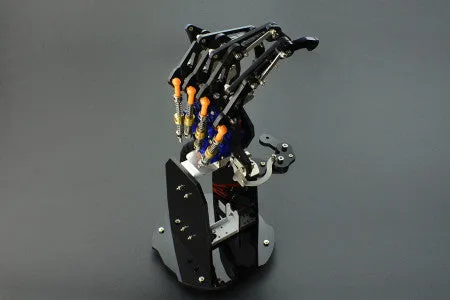

The bionic robot hand is made up of acrylic material. It consists of 5 micro metal servos, joints and one hand base. The special mechanical structure makes every finger can be controlled separately, all can move in certain range. And every finger has spring damping structure, it will protect the robotic hand from the mechanical stress effectively. With , all actions can be controlled via PC software, supporting online debug and wireless control.




The bionic robot hand can be controlled by Arduino and other Servo controllers. It can grab 500g object, and it is the best option for DIY robot hand demonstration.
The servo can be connected directly to the or the Romeo robot microcontroller, and Arduino servo library makes it easier to use.

Note: Please be careful with the servo control, even if there is damping structures on each finger, the non-standard operation will still damage the servos.

Features:

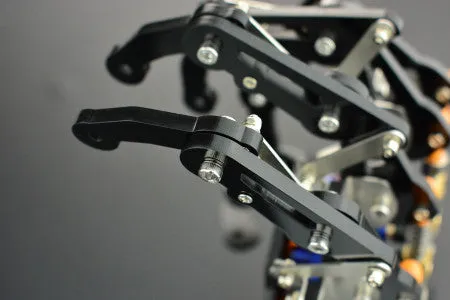

  • Bionic robot hand, every finger can be controlled separately.
  • Special spring damping structure, effective protection
  • Acrylic material, the whole kit is less than 900g
  • Free from manually assemble, assembled before delivery
  • Compatible with Arduino and the other Microcontroller
  • Recommend 5V@2A power supply.

    • Specification:

  • Operating Voltage: 4.8-6V
  • Control Signal: 1.0ms~2.0ms (45~135°)
  • Operating Current: 2A
  • Payload: 500g
  • Servo Torque: 2.4kg*cm (4.8v) 2.8kg*cm (6v)
  • Servo Speed: 0.11 "/ 60 ° (4.8v) 0.09" / 60 ° (6.0 V)
  • Operating Temperature: 0 ~ 55 ℃
  • Cable:Brown GND
    Red VCC
    OrangeSignal
  • Servo Dimension: 23 * 12.2 * 29mm /0.91*0.48*1.14 inches
  • Hand Dimension: 330 mm / 12.99 inches (Height)
  • Servo net weight: 14g
  • Weight: 916g (Whole kit)

    • Documents:

    Product Includes:

    Bionic Robot Hand (Left)x1
